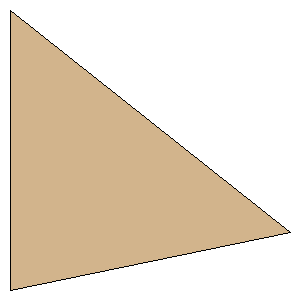

Minimum Diameter 2-Stage Trapezo Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.6250 inches (66.6750 mm) | | Tip Chord: | 0.0000 inches (0.0000 mm) | | Sweep Distance: | 2.0880 inches (53.0352 mm) | | SemiSpan: | 2.6250 inches (66.6750 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (66.6750 mm, 53.0352 mm) | | Point 3: | (66.6750 mm, 53.0352 mm) | | Point 4: | (0.0000 mm, 66.6750 mm) | | Width: | 2.6250 inches (66.6750 mm) | | Height: | 2.6250 inches (66.6750 mm) |
