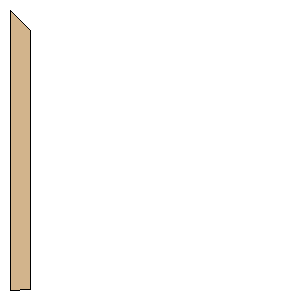

Estes Saturn V K-39 Trapezoid Fi Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 0.5625 inches (14.2875 mm) | | Tip Chord: | 0.5205 inches (13.2207 mm) | | Sweep Distance: | 0.0410 inches (1.0414 mm) | | SemiSpan: | 0.0410 inches (1.0414 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (1.0414 mm, 1.0414 mm) | | Point 3: | (1.0414 mm, 14.2621 mm) | | Point 4: | (0.0000 mm, 14.2875 mm) | | Width: | 0.0410 inches (1.0414 mm) | | Height: | 0.5625 inches (14.2875 mm) |
