Rocketry Parts Database >> Fins >>

Estes - Saturn V Trapezoid Fin S Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

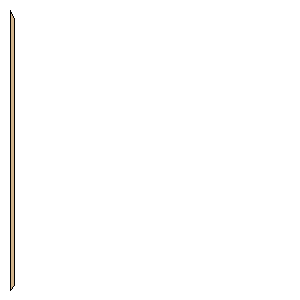

Root Chord:7.3750 inches (187.3250 mm)
Tip Chord:7.0000 inches (177.8000 mm)
Sweep Distance:0.2500 inches (6.3500 mm)
SemiSpan:0.1250 inches (3.1750 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(3.1750 mm, 6.3500 mm)
Point 3:(3.1750 mm, 184.1500 mm)
Point 4:(0.0000 mm, 187.3250 mm)
Width:0.1250 inches (3.1750 mm)
Height:7.3750 inches (187.3250 mm)
