Estes - Saturn V Trapezoid Fin S Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |

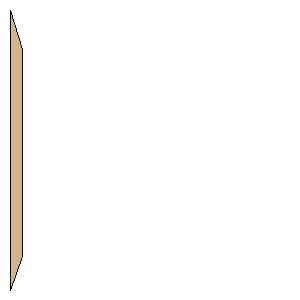

Download as PDF | Root Chord: | 2.8750 inches (73.0250 mm) | | Tip Chord: | 2.1250 inches (53.9750 mm) | | Sweep Distance: | 0.4026 inches (10.2260 mm) | | SemiSpan: | 0.1250 inches (3.1750 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (3.1750 mm, 10.2260 mm) | | Point 3: | (3.1750 mm, 64.2010 mm) | | Point 4: | (0.0000 mm, 73.0250 mm) | | Width: | 0.1250 inches (3.1750 mm) | | Height: | 2.8750 inches (73.0250 mm) |
