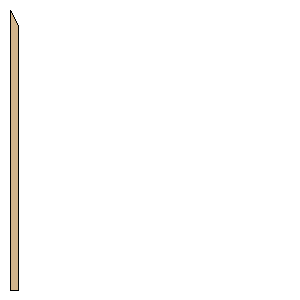

Estes - Saturn V Trapezoid Fin S Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 4.2500 inches (107.9500 mm) | | Tip Chord: | 4.0000 inches (101.6000 mm) | | Sweep Distance: | 0.2500 inches (6.3500 mm) | | SemiSpan: | 0.1250 inches (3.1750 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (3.1750 mm, 6.3500 mm) | | Point 3: | (3.1750 mm, 107.9500 mm) | | Point 4: | (0.0000 mm, 107.9500 mm) | | Width: | 0.1250 inches (3.1750 mm) | | Height: | 4.2500 inches (107.9500 mm) |
