Rocketry Parts Database >> Fins >>

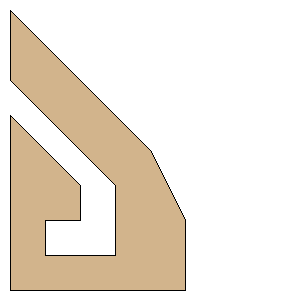

Omelette of Zeus Freeform Fin Se Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 6.3500 mm)
Point 2:(9.5250 mm, 15.8750 mm)
Point 3:(9.5250 mm, 22.2250 mm)
Point 4:(3.1750 mm, 22.2250 mm)
Point 5:(3.1750 mm, 19.0500 mm)
Point 6:(6.3500 mm, 19.0500 mm)
Point 7:(6.3500 mm, 15.8750 mm)
Point 8:(3.1750 mm, 12.7000 mm)
Point 9:(0.0000 mm, 9.5250 mm)
Point 10:(0.0000 mm, 22.2250 mm)
Point 11:(0.0000 mm, 25.4000 mm)
Point 12:(15.8750 mm, 25.4000 mm)
Point 13:(15.8750 mm, 19.0500 mm)
Point 14:(12.7000 mm, 12.7000 mm)
Point 15:(0.0000 mm, 0.0000 mm)
Width:0.6250 inches (15.8750 mm)
Height:1.0000 inches (25.4000 mm)
