Rocketry Parts Database >> Fins >>

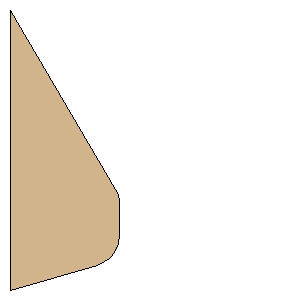

Double Digital Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 57.1472 mm)
Point 2:(17.8340 mm, 52.0453 mm)
Point 3:(18.6061 mm, 51.7694 mm)
Point 4:(19.3362 mm, 51.3962 mm)
Point 5:(20.0122 mm, 50.9321 mm)
Point 6:(20.6227 mm, 50.3848 mm)
Point 7:(21.1576 mm, 49.7633 mm)
Point 8:(21.6080 mm, 49.0781 mm)
Point 9:(21.9663 mm, 48.3406 mm)
Point 10:(22.2266 mm, 47.5631 mm)
Point 11:(22.4375 mm, 45.9402 mm)
Point 12:(22.4375 mm, 39.8541 mm)
Point 13:(22.4285 mm, 39.5165 mm)
Point 14:(22.4016 mm, 39.1798 mm)
Point 15:(22.3568 mm, 38.8450 mm)
Point 16:(22.2943 mm, 38.5131 mm)
Point 17:(22.2142 mm, 38.1850 mm)
Point 18:(22.1168 mm, 37.8616 mm)
Point 19:(22.0023 mm, 37.5439 mm)
Point 20:(21.8711 mm, 37.2326 mm)
Point 21:(21.5600 mm, 36.6333 mm)
Point 22:(0.0000 mm, 0.0000 mm)
Width:2.2499 inches (57.1472 mm)
Height:2.2499 inches (57.1472 mm)
