Head-On II Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

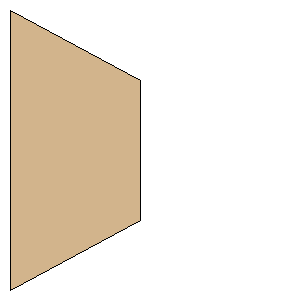

Root Chord:1.5000 inches (38.1000 mm)
Tip Chord:0.7500 inches (19.0500 mm)
Sweep Distance:0.3750 inches (9.5250 mm)
SemiSpan:0.7000 inches (17.7800 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(17.7800 mm, 9.5250 mm)
Point 3:(17.7800 mm, 28.5750 mm)
Point 4:(0.0000 mm, 38.1000 mm)
Width:0.7000 inches (17.7800 mm)
Height:1.5000 inches (38.1000 mm)
