Rocketry Parts Database >> Fins >>

Estes Predicta-1 Freeform Fin Se Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

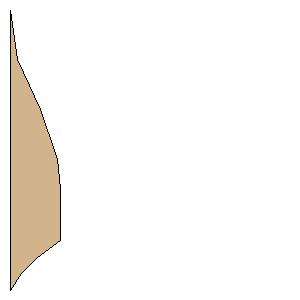

Point 1:(0.0000 mm, 71.1200 mm)
Point 2:(2.8828 mm, 66.8675 mm)
Point 3:(6.9169 mm, 62.8334 mm)
Point 4:(12.7000 mm, 58.4200 mm)
Point 5:(12.8559 mm, 45.6887 mm)
Point 6:(12.1465 mm, 38.0859 mm)
Point 7:(7.6708 mm, 25.4000 mm)
Point 8:(2.0320 mm, 12.7000 mm)
Point 9:(0.0000 mm, 0.0000 mm)
Width:2.8000 inches (71.1200 mm)
Height:2.8000 inches (71.1200 mm)
