Jagger Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |

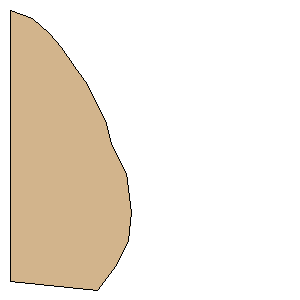

Download as PDF | Point 1: | (0.0000 mm, 37.3880 mm) | | Point 2: | (12.0303 mm, 38.5096 mm) | | Point 3: | (14.6607 mm, 35.1778 mm) | | Point 4: | (16.2390 mm, 31.6706 mm) | | Point 5: | (16.7650 mm, 27.8127 mm) | | Point 6: | (16.0636 mm, 22.5519 mm) | | Point 7: | (14.0000 mm, 18.5186 mm) | | Point 8: | (13.0825 mm, 15.1868 mm) | | Point 9: | (12.0303 mm, 13.0825 mm) | | Point 10: | (10.6275 mm, 10.2767 mm) | | Point 11: | (8.8739 mm, 7.8217 mm) | | Point 12: | (7.1203 mm, 5.1913 mm) | | Point 13: | (5.3667 mm, 3.2624 mm) | | Point 14: | (3.0870 mm, 1.1580 mm) | | Point 15: | (0.0000 mm, 0.0000 mm) | | Width: | 1.4720 inches (37.3880 mm) | | Height: | 1.5161 inches (38.5096 mm) |
