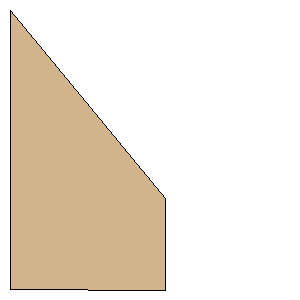

GBU-24 Paveway III Trapezoid Fin Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:1.5744 inches (39.9898 mm)
Tip Chord:0.5165 inches (13.1191 mm)
Sweep Distance:1.0607 inches (26.9418 mm)
SemiSpan:0.8744 inches (22.2098 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(22.2098 mm, 26.9418 mm)
Point 3:(22.2098 mm, 40.0609 mm)
Point 4:(0.0000 mm, 39.9898 mm)
Width:0.8744 inches (22.2098 mm)
Height:1.5772 inches (40.0609 mm)
