Rocketry Parts Database >> Fins >>

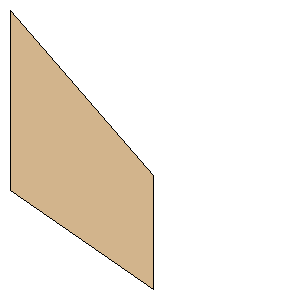

apogee_diamondback.rkt Trapezoid Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:2.8300 inches (71.8820 mm)
Tip Chord:1.7902 inches (45.4711 mm)
Sweep Distance:2.6067 inches (66.2102 mm)
SemiSpan:2.2500 inches (57.1500 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(57.1500 mm, 66.2102 mm)
Point 3:(57.1500 mm, 111.6813 mm)
Point 4:(0.0000 mm, 71.8820 mm)
Width:2.2500 inches (57.1500 mm)
Height:4.3969 inches (111.6813 mm)
