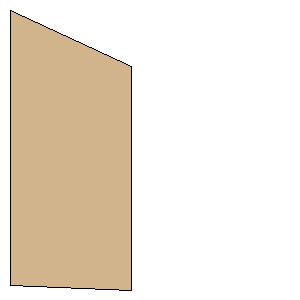

Rocketarium - Super Chief II Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.6772 inches (68.0009 mm) | | Tip Chord: | 2.1654 inches (55.0012 mm) | | Sweep Distance: | 0.5508 inches (13.9903 mm) | | SemiSpan: | 1.1811 inches (29.9999 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (29.9999 mm, 13.9903 mm) | | Point 3: | (29.9999 mm, 68.9915 mm) | | Point 4: | (0.0000 mm, 68.0009 mm) | | Width: | 1.1811 inches (29.9999 mm) | | Height: | 2.7162 inches (68.9915 mm) |
