Custom Balsa Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

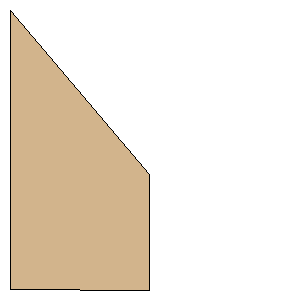

Root Chord:4.0000 inches (101.6000 mm)
Tip Chord:1.6500 inches (41.9100 mm)
Sweep Distance:2.3583 inches (59.9008 mm)
SemiSpan:2.0000 inches (50.8000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(50.8000 mm, 59.9008 mm)
Point 3:(50.8000 mm, 101.8108 mm)
Point 4:(0.0000 mm, 101.6000 mm)
Width:2.0000 inches (50.8000 mm)
Height:4.0083 inches (101.8108 mm)
