Rocketry Parts Database >> Fins >>

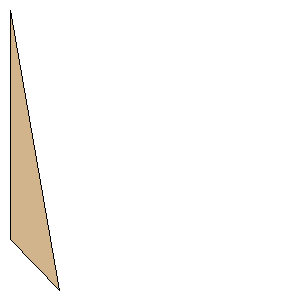

Estes Patna Mark-I Trapezoid Fin Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:4.6250 inches (117.4750 mm)
Tip Chord:0.0000 inches (0.0000 mm)
Sweep Distance:5.6500 inches (143.5100 mm)
SemiSpan:1.0000 inches (25.4000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(25.4000 mm, 143.5100 mm)
Point 3:(25.4000 mm, 143.5100 mm)
Point 4:(0.0000 mm, 117.4750 mm)
Width:1.0000 inches (25.4000 mm)
Height:5.6500 inches (143.5100 mm)
