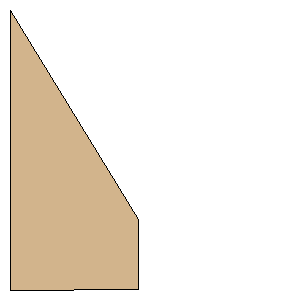

Double-D Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 6.0000 inches (152.4000 mm) | | Tip Chord: | 1.5000 inches (38.1000 mm) | | Sweep Distance: | 4.4999 inches (114.2975 mm) | | SemiSpan: | 2.7500 inches (69.8500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (69.8500 mm, 114.2975 mm) | | Point 3: | (69.8500 mm, 152.3975 mm) | | Point 4: | (0.0000 mm, 152.4000 mm) | | Width: | 2.7500 inches (69.8500 mm) | | Height: | 6.0000 inches (152.4000 mm) |
