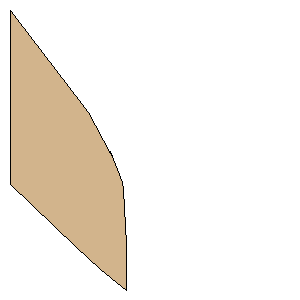

Radventure Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 43.2444 mm) | | Point 2: | (16.1696 mm, 58.4163 mm) | | Point 3: | (22.4532 mm, 64.1763 mm) | | Point 4: | (28.9114 mm, 69.2381 mm) | | Point 5: | (28.7368 mm, 57.7182 mm) | | Point 6: | (28.0864 mm, 44.5474 mm) | | Point 7: | (28.0226 mm, 43.9101 mm) | | Point 8: | (27.8949 mm, 43.2825 mm) | | Point 9: | (27.7047 mm, 42.6710 mm) | | Point 10: | (24.8968 mm, 35.0274 mm) | | Point 11: | (25.1169 mm, 36.0355 mm) | | Point 12: | (24.9970 mm, 35.7781 mm) | | Point 13: | (24.8658 mm, 35.5264 mm) | | Point 14: | (19.3114 mm, 25.4275 mm) | | Point 15: | (0.0000 mm, 0.0000 mm) | | Width: | 1.7025 inches (43.2444 mm) | | Height: | 2.7259 inches (69.2381 mm) |
