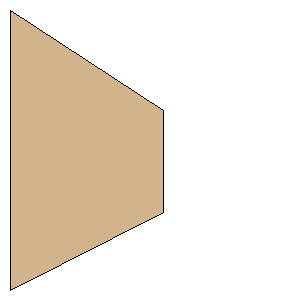

Javelin.rkt Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.3700 inches (34.7980 mm) | | Tip Chord: | 0.5000 inches (12.7000 mm) | | Sweep Distance: | 0.4914 inches (12.4816 mm) | | SemiSpan: | 0.7500 inches (19.0500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (19.0500 mm, 12.4816 mm) | | Point 3: | (19.0500 mm, 25.1816 mm) | | Point 4: | (0.0000 mm, 34.7980 mm) | | Width: | 0.7500 inches (19.0500 mm) | | Height: | 1.3700 inches (34.7980 mm) |
