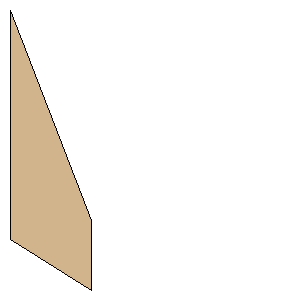

Custom Balsa Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 7.0000 inches (177.8000 mm) | | Tip Chord: | 2.1250 inches (53.9750 mm) | | Sweep Distance: | 6.4304 inches (163.3322 mm) | | SemiSpan: | 2.5000 inches (63.5000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (63.5000 mm, 163.3322 mm) | | Point 3: | (63.5000 mm, 217.3072 mm) | | Point 4: | (0.0000 mm, 177.8000 mm) | | Width: | 2.5000 inches (63.5000 mm) | | Height: | 8.5554 inches (217.3072 mm) |
