Rocketry Parts Database >> Fins >>

Custom Balsa Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:13.2500 inches (336.5500 mm)
Tip Chord:12.7500 inches (323.8500 mm)
Sweep Distance:0.2638 inches (6.7005 mm)
SemiSpan:0.1875 inches (4.7625 mm)

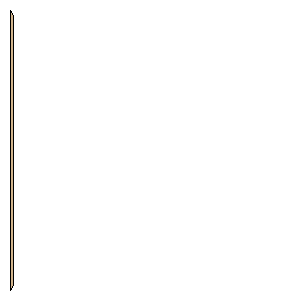

Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(4.7625 mm, 6.7005 mm)
Point 3:(4.7625 mm, 330.5505 mm)
Point 4:(0.0000 mm, 336.5500 mm)
Width:0.1875 inches (4.7625 mm)
Height:13.2500 inches (336.5500 mm)
