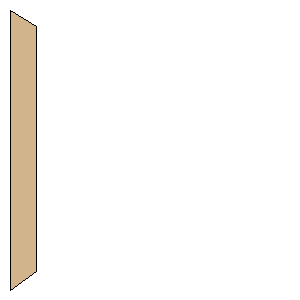

Saturn V Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.0000 inches (50.8000 mm) | | Tip Chord: | 1.7500 inches (44.4500 mm) | | Sweep Distance: | 0.1210 inches (3.0734 mm) | | SemiSpan: | 0.1900 inches (4.8260 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (4.8260 mm, 3.0734 mm) | | Point 3: | (4.8260 mm, 47.5234 mm) | | Point 4: | (0.0000 mm, 50.8000 mm) | | Width: | 0.1900 inches (4.8260 mm) | | Height: | 2.0000 inches (50.8000 mm) |
