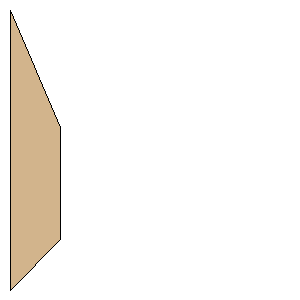

maelstrom.rkt Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.9685 inches (49.9999 mm) | | Tip Chord: | 0.7874 inches (20.0000 mm) | | Sweep Distance: | 0.8268 inches (21.0007 mm) | | SemiSpan: | 0.3543 inches (8.9992 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (8.9992 mm, 21.0007 mm) | | Point 3: | (8.9992 mm, 41.0007 mm) | | Point 4: | (0.0000 mm, 49.9999 mm) | | Width: | 0.3543 inches (8.9992 mm) | | Height: | 1.9685 inches (49.9999 mm) |
