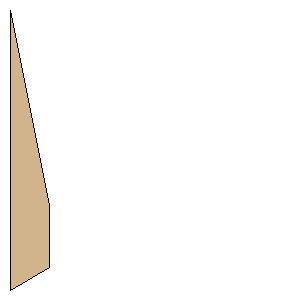

Estes Satellite Interceptor Trap Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 6.4375 inches (163.5125 mm) | | Tip Chord: | 1.4200 inches (36.0680 mm) | | Sweep Distance: | 4.5000 inches (114.3000 mm) | | SemiSpan: | 0.9000 inches (22.8600 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (22.8600 mm, 114.3000 mm) | | Point 3: | (22.8600 mm, 150.3680 mm) | | Point 4: | (0.0000 mm, 163.5125 mm) | | Width: | 0.9000 inches (22.8600 mm) | | Height: | 6.4375 inches (163.5125 mm) |
