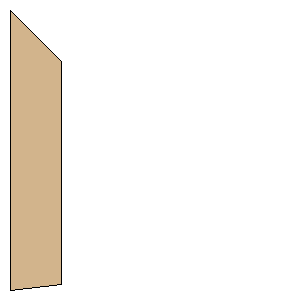

Sam-X Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.0300 inches (26.1620 mm) | | Tip Chord: | 0.8200 inches (20.8280 mm) | | Sweep Distance: | 0.1880 inches (4.7752 mm) | | SemiSpan: | 0.1880 inches (4.7752 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (4.7752 mm, 4.7752 mm) | | Point 3: | (4.7752 mm, 25.6032 mm) | | Point 4: | (0.0000 mm, 26.1620 mm) | | Width: | 0.1880 inches (4.7752 mm) | | Height: | 1.0300 inches (26.1620 mm) |
