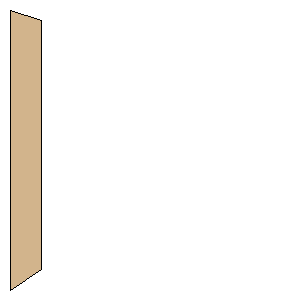

Centuri Taurus.ekc Trapezoid Fin Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 3.3750 inches (85.7250 mm) | | Tip Chord: | 3.0000 inches (76.2000 mm) | | Sweep Distance: | 0.1250 inches (3.1750 mm) | | SemiSpan: | 0.3750 inches (9.5250 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (9.5250 mm, 3.1750 mm) | | Point 3: | (9.5250 mm, 79.3750 mm) | | Point 4: | (0.0000 mm, 85.7250 mm) | | Width: | 0.3750 inches (9.5250 mm) | | Height: | 3.3750 inches (85.7250 mm) |
