Rocketry Parts Database >> Fins >>

Estes USS Atlantis Trapezoid Fin Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

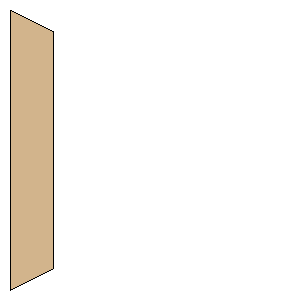

Root Chord:1.6250 inches (41.2750 mm)
Tip Chord:1.3750 inches (34.9250 mm)
Sweep Distance:0.1250 inches (3.1750 mm)
SemiSpan:0.2500 inches (6.3500 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(6.3500 mm, 3.1750 mm)
Point 3:(6.3500 mm, 38.1000 mm)
Point 4:(0.0000 mm, 41.2750 mm)
Width:0.2500 inches (6.3500 mm)
Height:1.6250 inches (41.2750 mm)
