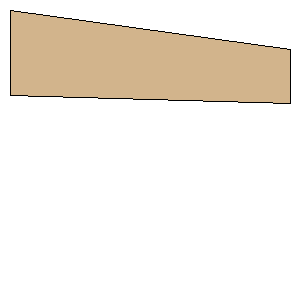

Nike Hercules Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 0.3300 inches (8.3820 mm) | | Tip Chord: | 0.2100 inches (5.3340 mm) | | Sweep Distance: | 0.1518 inches (3.8557 mm) | | SemiSpan: | 1.0800 inches (27.4320 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (27.4320 mm, 3.8557 mm) | | Point 3: | (27.4320 mm, 9.1897 mm) | | Point 4: | (0.0000 mm, 8.3820 mm) | | Width: | 1.0800 inches (27.4320 mm) | | Height: | 0.3618 inches (9.1897 mm) |
