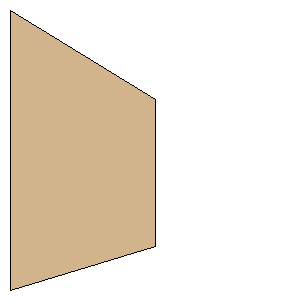

Core Sampler Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 3.1250 inches (79.3750 mm) | | Tip Chord: | 1.6370 inches (41.5798 mm) | | Sweep Distance: | 1.0000 inches (25.4000 mm) | | SemiSpan: | 1.6250 inches (41.2750 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (41.2750 mm, 25.4000 mm) | | Point 3: | (41.2750 mm, 66.9798 mm) | | Point 4: | (0.0000 mm, 79.3750 mm) | | Width: | 1.6250 inches (41.2750 mm) | | Height: | 3.1250 inches (79.3750 mm) |
