Rocketry Parts Database >> Fins >>

U.S. Rockets Sonic 160b Trapezoi Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

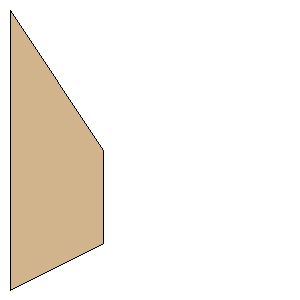

Root Chord:3.0000 inches (76.2000 mm)
Tip Chord:1.0000 inches (25.4000 mm)
Sweep Distance:1.5000 inches (38.1000 mm)
SemiSpan:1.0000 inches (25.4000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(25.4000 mm, 38.1000 mm)
Point 3:(25.4000 mm, 63.5000 mm)
Point 4:(0.0000 mm, 76.2000 mm)
Width:1.0000 inches (25.4000 mm)
Height:3.0000 inches (76.2000 mm)
