Delta X-15 Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |

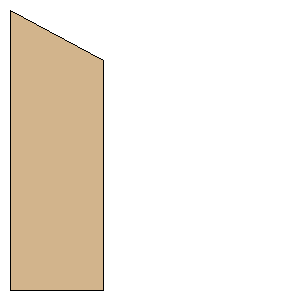

Download as PDF | Root Chord: | 4.8750 inches (123.8250 mm) | | Tip Chord: | 4.0000 inches (101.6000 mm) | | Sweep Distance: | 0.8750 inches (22.2250 mm) | | SemiSpan: | 1.6250 inches (41.2750 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (41.2750 mm, 22.2250 mm) | | Point 3: | (41.2750 mm, 123.8250 mm) | | Point 4: | (0.0000 mm, 123.8250 mm) | | Width: | 1.6250 inches (41.2750 mm) | | Height: | 4.8750 inches (123.8250 mm) |
