Rocketry Parts Database >> Fins >>

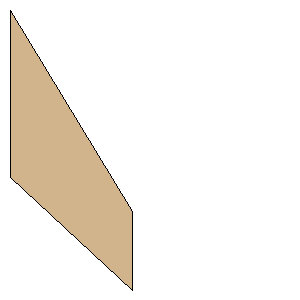

Stormcaster Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:4.2500 inches (107.9500 mm)
Tip Chord:2.0000 inches (50.8000 mm)
Sweep Distance:5.1250 inches (130.1750 mm)
SemiSpan:3.1250 inches (79.3750 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(79.3750 mm, 130.1750 mm)
Point 3:(79.3750 mm, 180.9750 mm)
Point 4:(0.0000 mm, 107.9500 mm)
Width:3.1250 inches (79.3750 mm)
Height:7.1250 inches (180.9750 mm)
