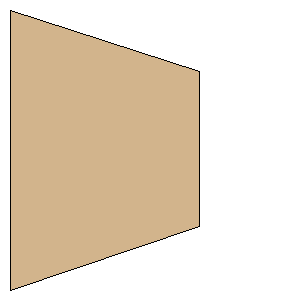

Cheetah Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.2579 inches (57.3507 mm) | | Tip Chord: | 1.2461 inches (31.6509 mm) | | Sweep Distance: | 0.4970 inches (12.6238 mm) | | SemiSpan: | 1.5295 inches (38.8493 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (38.8493 mm, 12.6238 mm) | | Point 3: | (38.8493 mm, 44.2747 mm) | | Point 4: | (0.0000 mm, 57.3507 mm) | | Width: | 1.5295 inches (38.8493 mm) | | Height: | 2.2579 inches (57.3507 mm) |
