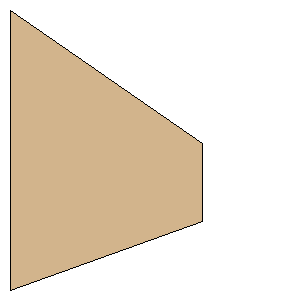

Quest_X15.rkt Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 3.5433 inches (89.9998 mm) | | Tip Chord: | 0.9843 inches (25.0012 mm) | | Sweep Distance: | 1.6929 inches (42.9997 mm) | | SemiSpan: | 2.4409 inches (61.9989 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (61.9989 mm, 42.9997 mm) | | Point 3: | (61.9989 mm, 68.0009 mm) | | Point 4: | (0.0000 mm, 89.9998 mm) | | Width: | 2.4409 inches (61.9989 mm) | | Height: | 3.5433 inches (89.9998 mm) |
