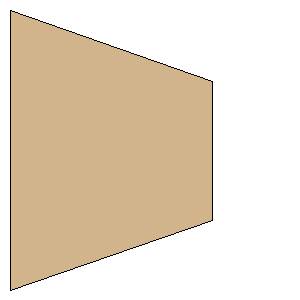

Nomad Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 3.2622 inches (82.8599 mm) | | Tip Chord: | 1.6181 inches (41.0997 mm) | | Sweep Distance: | 0.8365 inches (21.2471 mm) | | SemiSpan: | 2.3622 inches (59.9999 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (59.9999 mm, 21.2471 mm) | | Point 3: | (59.9999 mm, 62.3468 mm) | | Point 4: | (0.0000 mm, 82.8599 mm) | | Width: | 2.3622 inches (59.9999 mm) | | Height: | 3.2622 inches (82.8599 mm) |
