Rocketry Parts Database >> Fins >>

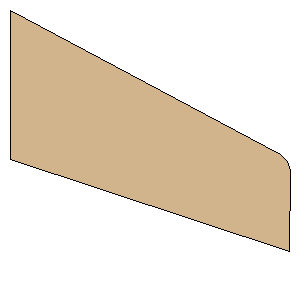

SST Shuttle Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 25.4000 mm)
Point 2:(47.6250 mm, 41.1480 mm)
Point 3:(47.7153 mm, 27.4318 mm)
Point 4:(47.2691 mm, 25.7876 mm)
Point 5:(46.0372 mm, 24.6109 mm)
Point 6:(0.0000 mm, 0.0000 mm)
Width:1.8786 inches (47.7153 mm)
Height:1.6200 inches (41.1480 mm)
