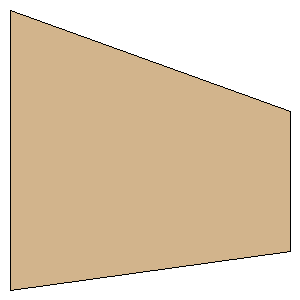

WishBone Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.6500 inches (67.3100 mm) | | Tip Chord: | 1.3250 inches (33.6550 mm) | | Sweep Distance: | 0.9645 inches (24.4983 mm) | | SemiSpan: | 2.6500 inches (67.3100 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (67.3100 mm, 24.4983 mm) | | Point 3: | (67.3100 mm, 58.1533 mm) | | Point 4: | (0.0000 mm, 67.3100 mm) | | Width: | 2.6500 inches (67.3100 mm) | | Height: | 2.6500 inches (67.3100 mm) |
