Rocketry Parts Database >> Fins >>

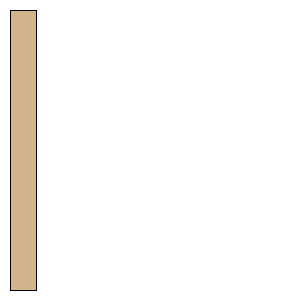

scratch_boxoparts_salvage_90.rkt Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:2.0000 inches (50.8000 mm)
Tip Chord:2.0000 inches (50.8000 mm)
Sweep Distance:0.0000 inches (0.0000 mm)
SemiSpan:0.1875 inches (4.7625 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(4.7625 mm, 0.0000 mm)
Point 3:(4.7625 mm, 50.8000 mm)
Point 4:(0.0000 mm, 50.8000 mm)
Width:0.1875 inches (4.7625 mm)
Height:2.0000 inches (50.8000 mm)
