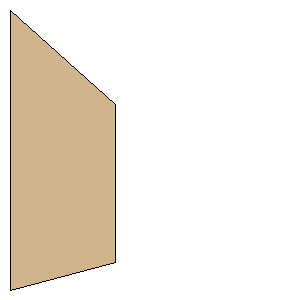

Quest Harpon AGM Trapezoid Fin S Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.0000 inches (50.8000 mm) | | Tip Chord: | 1.1250 inches (28.5750 mm) | | Sweep Distance: | 0.6751 inches (17.1475 mm) | | SemiSpan: | 0.7500 inches (19.0500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (19.0500 mm, 17.1475 mm) | | Point 3: | (19.0500 mm, 45.7225 mm) | | Point 4: | (0.0000 mm, 50.8000 mm) | | Width: | 0.7500 inches (19.0500 mm) | | Height: | 2.0000 inches (50.8000 mm) |
