Rocketry Parts Database >> Fins >>

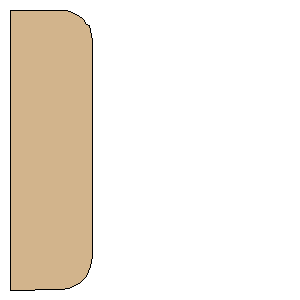

GBU-24 Paveway III Freeform Fin Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 70.5610 mm)
Point 2:(12.6694 mm, 70.5329 mm)
Point 3:(15.0000 mm, 70.1154 mm)
Point 4:(17.4723 mm, 68.9173 mm)
Point 5:(19.2461 mm, 67.0619 mm)
Point 6:(20.3410 mm, 64.7402 mm)
Point 7:(20.7064 mm, 62.1695 mm)
Point 8:(20.7444 mm, 8.0056 mm)
Point 9:(20.5916 mm, 6.4441 mm)
Point 10:(20.1370 mm, 4.0000 mm)
Point 11:(19.3981 mm, 3.5584 mm)
Point 12:(18.4032 mm, 2.3451 mm)
Point 13:(17.1907 mm, 1.3494 mm)
Point 14:(15.8072 mm, 0.6095 mm)
Point 15:(14.3058 mm, 0.1539 mm)
Point 16:(12.7444 mm, 0.0000 mm)
Point 17:(0.0000 mm, 0.0000 mm)
Width:2.7780 inches (70.5610 mm)
Height:2.7780 inches (70.5610 mm)
