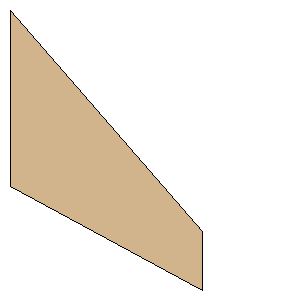

Estes Magnum Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 3.0000 inches (76.2000 mm) | | Tip Chord: | 1.0000 inches (25.4000 mm) | | Sweep Distance: | 3.7504 inches (95.2602 mm) | | SemiSpan: | 3.2740 inches (83.1596 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (83.1596 mm, 95.2602 mm) | | Point 3: | (83.1596 mm, 120.6602 mm) | | Point 4: | (0.0000 mm, 76.2000 mm) | | Width: | 3.2740 inches (83.1596 mm) | | Height: | 4.7504 inches (120.6602 mm) |
