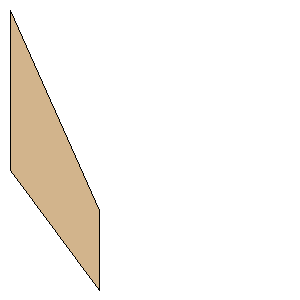

v1.4.rkt Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 6.2500 inches (158.7500 mm) | | Tip Chord: | 3.1000 inches (78.7400 mm) | | Sweep Distance: | 7.8152 inches (198.5061 mm) | | SemiSpan: | 3.5000 inches (88.9000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (88.9000 mm, 198.5061 mm) | | Point 3: | (88.9000 mm, 277.2461 mm) | | Point 4: | (0.0000 mm, 158.7500 mm) | | Width: | 3.5000 inches (88.9000 mm) | | Height: | 10.9152 inches (277.2461 mm) |
