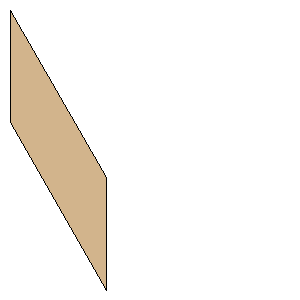

Sand Gnat Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 0.8750 inches (22.2250 mm) | | Tip Chord: | 0.8750 inches (22.2250 mm) | | Sweep Distance: | 1.2996 inches (33.0098 mm) | | SemiSpan: | 0.7500 inches (19.0500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (19.0500 mm, 33.0098 mm) | | Point 3: | (19.0500 mm, 55.2348 mm) | | Point 4: | (0.0000 mm, 22.2250 mm) | | Width: | 0.7500 inches (19.0500 mm) | | Height: | 2.1746 inches (55.2348 mm) |
