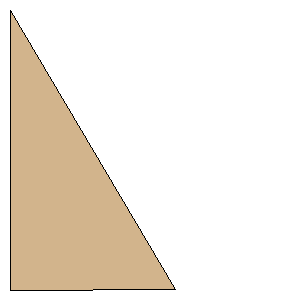

Estes AMRAAM AIM-120 Trapezoid F Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:2.7500 inches (69.8500 mm)
Tip Chord:0.0000 inches (0.0000 mm)
Sweep Distance:2.7499 inches (69.8475 mm)
SemiSpan:1.6250 inches (41.2750 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(41.2750 mm, 69.8475 mm)
Point 3:(41.2750 mm, 69.8475 mm)
Point 4:(0.0000 mm, 69.8500 mm)
Width:1.6250 inches (41.2750 mm)
Height:2.7500 inches (69.8500 mm)
