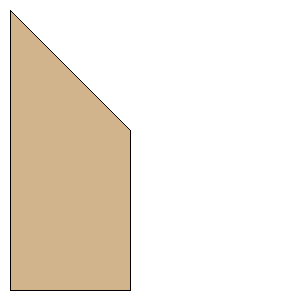

scratch_design_contest_iss_pluto Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 0.7000 inches (17.7800 mm) | | Tip Chord: | 0.4000 inches (10.1600 mm) | | Sweep Distance: | 0.3000 inches (7.6200 mm) | | SemiSpan: | 0.3000 inches (7.6200 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (7.6200 mm, 7.6200 mm) | | Point 3: | (7.6200 mm, 17.7800 mm) | | Point 4: | (0.0000 mm, 17.7800 mm) | | Width: | 0.3000 inches (7.6200 mm) | | Height: | 0.7000 inches (17.7800 mm) |
