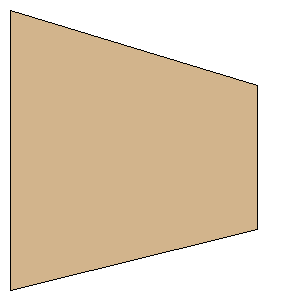

Nomad Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.9618 inches (49.8297 mm) | | Tip Chord: | 1.0083 inches (25.6108 mm) | | Sweep Distance: | 0.5288 inches (13.4315 mm) | | SemiSpan: | 1.7323 inches (44.0004 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (44.0004 mm, 13.4315 mm) | | Point 3: | (44.0004 mm, 39.0423 mm) | | Point 4: | (0.0000 mm, 49.8297 mm) | | Width: | 1.7323 inches (44.0004 mm) | | Height: | 1.9618 inches (49.8297 mm) |
