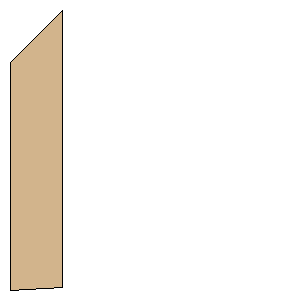

Estes Ram Jet Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.1870 inches (30.1498 mm) | | Tip Chord: | 1.4500 inches (36.8300 mm) | | Sweep Distance: | -0.2750 inches (-6.9850 mm) | | SemiSpan: | 0.2750 inches (6.9850 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (6.9850 mm, -6.9850 mm) | | Point 3: | (6.9850 mm, 29.8450 mm) | | Point 4: | (0.0000 mm, 30.1498 mm) | | Width: | 0.2750 inches (6.9850 mm) | | Height: | 1.4620 inches (37.1348 mm) |
