Rocketry Parts Database >> Fins >>

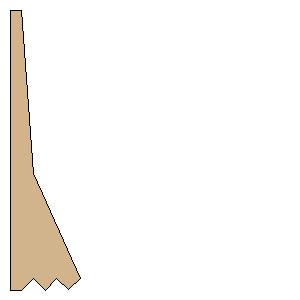

Stealth Barb Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 152.4000 mm)
Point 2:(6.3500 mm, 152.4000 mm)
Point 3:(12.7000 mm, 146.0500 mm)
Point 4:(19.0500 mm, 152.4000 mm)
Point 5:(25.4000 mm, 146.0500 mm)
Point 6:(31.6026 mm, 152.2992 mm)
Point 7:(38.1000 mm, 146.0500 mm)
Point 8:(12.7000 mm, 88.9000 mm)
Point 9:(6.3500 mm, 0.0000 mm)
Point 10:(0.0000 mm, 0.0000 mm)
Width:6.0000 inches (152.4000 mm)
Height:6.0000 inches (152.4000 mm)
