Rocketry Parts Database >> Fins >>

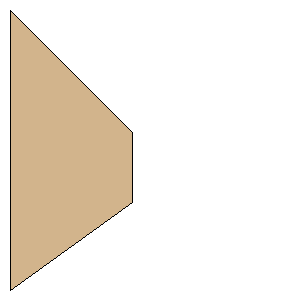

scratch_higher_calling.rkt Trape Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:4.0000 inches (101.6000 mm)
Tip Chord:1.0000 inches (25.4000 mm)
Sweep Distance:1.7500 inches (44.4500 mm)
SemiSpan:1.7500 inches (44.4500 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(44.4500 mm, 44.4500 mm)
Point 3:(44.4500 mm, 69.8500 mm)
Point 4:(0.0000 mm, 101.6000 mm)
Width:1.7500 inches (44.4500 mm)
Height:4.0000 inches (101.6000 mm)
