Rocketry Parts Database >> Fins >>

Estes Colonial Viper Trapezoid F Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

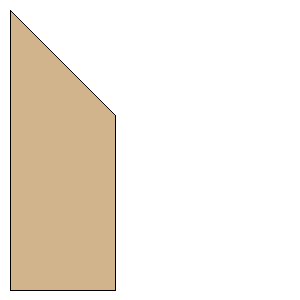

Root Chord:3.0000 inches (76.2000 mm)
Tip Chord:1.8750 inches (47.6250 mm)
Sweep Distance:1.1250 inches (28.5750 mm)
SemiSpan:1.1250 inches (28.5750 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(28.5750 mm, 28.5750 mm)
Point 3:(28.5750 mm, 76.2000 mm)
Point 4:(0.0000 mm, 76.2000 mm)
Width:1.1250 inches (28.5750 mm)
Height:3.0000 inches (76.2000 mm)
