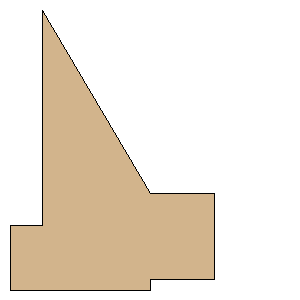

Estes Mercury Redstone -1921 Fre Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 63.5000 mm) | | Point 2: | (-9.5250 mm, 63.5000 mm) | | Point 3: | (-9.5250 mm, 82.5500 mm) | | Point 4: | (31.7500 mm, 82.5500 mm) | | Point 5: | (31.7500 mm, 79.3750 mm) | | Point 6: | (50.8000 mm, 79.3750 mm) | | Point 7: | (50.8000 mm, 53.9750 mm) | | Point 8: | (31.7500 mm, 53.9750 mm) | | Point 9: | (0.0000 mm, 0.0000 mm) | | Width: | 2.8750 inches (73.0250 mm) | | Height: | 3.2500 inches (82.5500 mm) |
